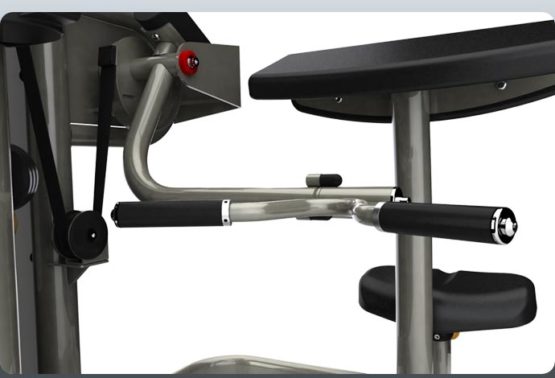

• Arm pad is angled for stability, and limits unwanted shoulder movement during exercise
• Optimized pivot location creates a biomechanically correct range of motion
• Angled hand grips ensure optimal wrist position
EASE OF USE
Color-coded Pivots & Adjusts Yes
Instructional Placards Yes
Bottle & Towel Holder Yes
Ergo Form Cushions Yes
FRAME & BELT
Over-sized Internal Frame Tubing Yes
Frame finish Proprietary two-coat powder process
Frame Color Polarized Titanium
Belt Transmission Reinforced 15/16″ flat Kevlar/urethane belt
Overall Dimensions 122.2 x 108.6 x 150.6 cm / 48.1″ x 42.8″ x 59.3″
Total Weight 228 kg / 502 lbs.
Weight Stack 91 kg / 200 lbs.
Shipping Weight 245 kg / 540 lbs.
Self-lubricating Weight Stack Bushings Solid cold-rolled steel plate, with Teflon inner bushings.
Suspension 3-Point Design
Guards & Pulleys Covers Yes
Weight Pins Magnetic & tethered
