• Chest pad and hip pad form a diverging angle which encourages a full range of motion and helps reduce lower-back stress

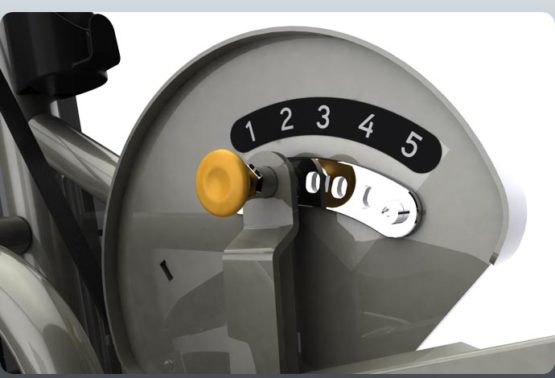

• Standard range-of-motion adjuster for individual preference

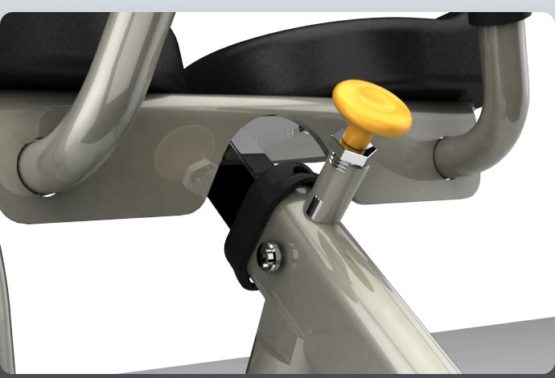

• Pivot location clearly marked to encourage correct alignment
EASE OF USE
Color-coded Pivots & Adjusts Yes
Instructional Placards Yes
Bottle & Towel Holder Yes

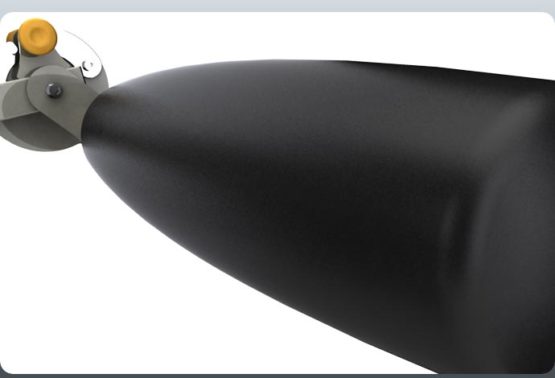

Ergo Form Cushions Yes
FRAME & BELT
Over-sized Internal Frame Tubing Yes
Frame finish Proprietary two-coat powder process
Frame Color Polarized Titanium
Belt Transmission Reinforced 15/16″ flat Kevlar/urethane belt
Overall Dimensions 177.5 x 111.7 x 173.6 cm / 69.9″ x 44.0″ x 68.3″
Total Weight 272 kg / 600 lbs.
Weight Stack 91 kg / 200 lbs.
Shipping Weight 322 kg / 710 lbs.
Self-lubricating Weight Stack Bushings Solid cold-rolled steel plate, with Teflon inner bushings.
Suspension 3-Point Design
Guards & Pulleys Covers Yes
Weight Pins Magnetic & tethered
