CXC Training Cycle
Discover how the industry’s best research and development network developed a line of training cycles that’s set to breathe new life into cycling classes everywhere.
Ideal for group cycling classes or for use by riders on your cardio floor.
Narrow Q-factor optimizes ergonomics for a real outdoor riding feel.
Low-maintenance, well-protected rear flywheel design includes magnetic resistance for smooth, consistent adjustments.
Contoured resistance lever provides tactile feedback for quick changes.
Intuitive adjustments customize the cycle to each user’s body.
Ergonomically sculpted seat relieves pressure on touchpoints.
Comfortable multi-position handlebars with an integrated water bottle holder simulate the different grips of real road racing.
Integrated device storage shelf keeps smartphones in view.

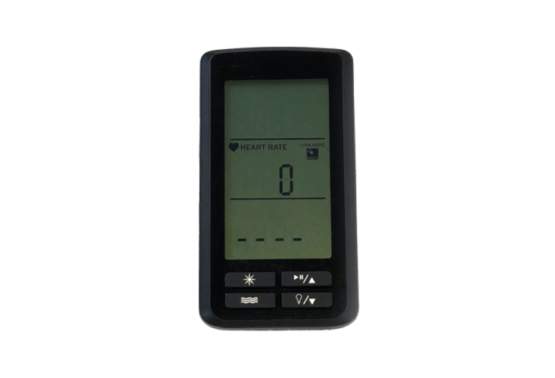

Optional wireless LCD console displays RPMs, calories, distance, time and heart rate when used with a heart rate strap.
Quick-release access panels and easily removable pedal cranks simplify service.
Durable Drive System
Our single-piece, weld-free drive system with an adjustment-free Flexonic belt provides consistent performance and will never warp, and our magnetic resistance system virtually eliminates internal friction and failure points.
Our flywheel includes a protective shroud that keeps the moving components safe from sweat, cleaning solvents and dust, prolonging product life and averting problems before they ever occur.
Leveraging a combination of highly skilled technicians, automatic assembly and robotic welds, we were able to build the industry’s most stable, solid-feeling frame.
Solid & Portable
We built cycles that had a stable feel no matter how intense the ride, but we also included integrated wheels and handles so rearranging them was still easy despite the ultra-solid construction.
Drivetrain Flexonic belt
Drivetrain Gear Ratio 1:10
Power Measurement (Watt) No
Console Optional LCD
Generator Powered No
Training Intensity Guide No
Asset Management Compatible No
Workout Tracking Compatible No
Resistance System Magnetic
Emergency Stop Push
Flywheel Rear, aluminum, evenly-weighted
Adjustment Type Quick-touch levers
Posts & Sliders Aluminum, pin-to-lock adjustment
Handlebar Ergo-formed, multi-position, soft PVC
Handlebar Adjustments Vertical & horizontal
Saddle Ergonomically sculpted seat
Saddle Adjustments Vertical & horizontal
Water Bottle Holder Dual, integrated on handlebar
Telemetric HR Yes
WiFi Enabled No
ANT+/Bluetooth Enabled No
Frame Color Matte black
Frame Material Steel
Shrouds & Guard Full Frame
Frame Design Off-set
Q Factor 155 mm / 6.1″
Crank Type Forged steel 170 mm / 6.7″
Pedal Type Dual-sided SPD & toe cage
Frame Stabilizer Bars Oversized, hidden bolts & fixings
Protection Plates Yes
Leveling Feet 4
Transport Wheels 2
Overall Dimensions (L x W x H) 122.4 x 56.4 x 102.8 cm / 48.2″ x 22.2″ x 40.5″
Product Weight 55.2 kg / 121.6 lbs.
Max User Weight 158.75 kg / 350 lbs.
