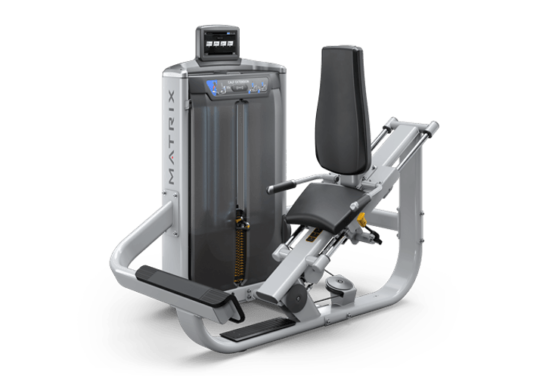

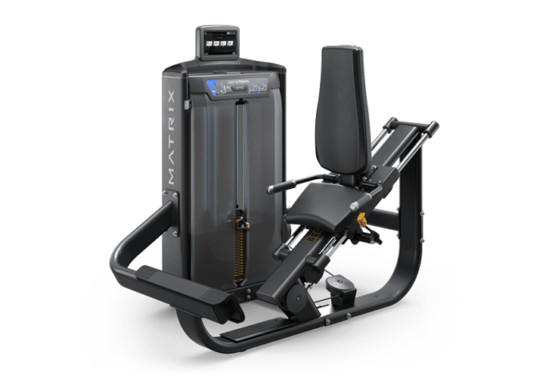

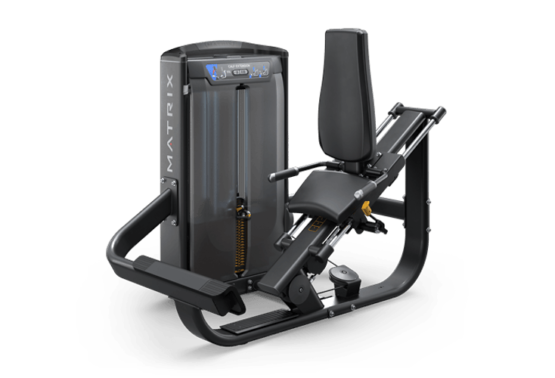

Ultra Calf Extension

Ultra Calf Extension

G7-S77
Angled user seated position provides greater lumbar support

Add to Wishlist

Email to a friend

Category: Single Station

Description

Description

FEATURES

• Range-of-motion adjustment accommodates a variety of users and start positions

• Ergonomic adjustment handle enables simple changes in start position

• Guide rod and bearing-designed carriage improves long-term durability and smooth performance

• The optional Intelligent Training Console features Endurance, Build and Strength programs to give members a guided training experience specific to their goals

Exercise Placards

Conveniently located and easy to read exercise placards offer a quick reference to targeted muscle groups and proper machine use. Placards also offer color references to easily identify muscle-group categories.

Incremental Weights

Incremental weights are easily accessible from the seated position. Numeric selection allows users easy reference for future use.

Electronic Rep Counter

Integrated system tracks repetitions, activity time, and rest time for a simplified workout experience.

Intelligent Training Console (Optional)

When you choose Ultra Series with Intelligent Training Console, you’ll get a digitally connected, guided experience.

SPECS

ADJUSTMENTS

User adjustment range 8 User start options

Color coded pivots & points of adjustment Yes

FRAME & CABLES

Available frame colors Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium

Frame finish Proprietary two-coat powder process

Cable transmission Internally lubricated cables & fittings

Machine anchoring Independent machine hold down brackets

Integrated leveling system Yes, top-down leveler

INTELLIGENT TRAINING CONSOLE (OPTIONAL)

Progression Based Programming Yes

Stored user settings Yes – Seat Settings and Bluetooth HR

Demo Video Yes

Dual User Sign-In Yes

Workouts Manual, Endurance, Build, Strength*, E-Lifts*

Personal Trainer Portal Compatible Yes

Netpulse Compatible Yes

Workout Tracking Network Compatible Yes

Web Connectivity Yes

WiFi Yes

Display Feedback Sets, Reps, Rest Time, Total Weight Lifted

Ethernet Port Yes

Bluetooth Heart Rate Only

User-defined Multi-language Display English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish

Lift to Start Yes

FitTouch™ Technology Yes

Display Type 25.7 cm / 10.1″ class touchscreen LCD

Asset Management Compatible Yes

Facility Communication Portal/Calendar No

CSAFE Ready-FitLinxx™ Certified No

USB Port No (service only)

Assembled Dimensions As assembled on Ultra weight stack – 153 cm / 60.2″

Power Requirements 100v-240v – 50/60Hz AC

Shipping Weight 7.8 kg / 17.2 lb

TECH SPECS

Overall “static” dimensions (L x W x H) 169 x 120 x 135 cm / 66.5″ x 47.2″ x 53″

Overall “in-use” dimensions (L x W x H) 169 x 120 x 150 cm / 66.5″ x 47.2″ x 59″

Product weight 291 kg / 642 lbs

Shipping weight 337 kg / 743 lbs

Rep counter machine usage tracking Service mode tracks total machine reps and hours of use

Rep counter battery life Approximately 3 years

Rep counter power supply 2 AA batteries

USER AMENITIES

Front placards Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification

Rear placards Color-coded machine identification, exercise specific stretching

Placard color coding Blue (lower body)

Rep counter Electronic counter displays reps, exercise time and rest time

Personal storage Two tactile storage mats, personal device cradle and towel hook

Contoured seat Yes
