Product Description

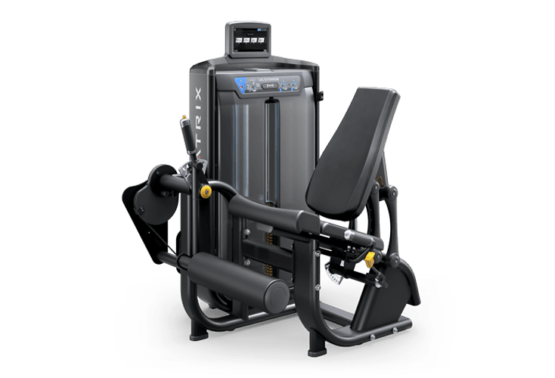

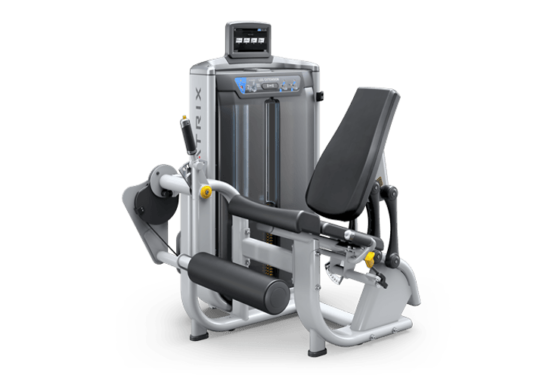

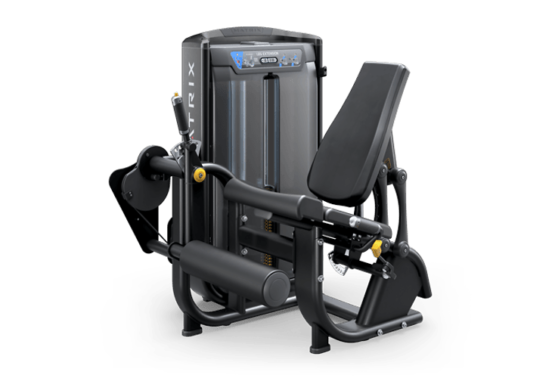

Ultra Leg Extension
G7-S71
Pivot location clearly marked to encourage correct alignment.
Description
• Angled seat and back pad encourages full quadriceps contraction for user movement
• Self-adjusting tibia pad for greater ease of use
• Pivot location clearly marked to encourage correct alignment
• Thumb switch controls allow for easy adjustments
• The optional Intelligent Training Console features Endurance, Build and Strength programs to give members a guided training experience specific to their goals
Exercise Placards
Conveniently located and easy to read exercise placards offer a quick reference to targeted muscle groups and proper machine use. Placards also offer color references to easily identify muscle-group categories.
Incremental Weights
Incremental weights are easily accessible from the seated position. Numeric selection allows users easy reference for future use.
Electronic Rep Counter
Integrated system tracks repetitions, activity time, and rest time for a simplified workout experience.
Intelligent Training Console (Optional)
When you choose Ultra Series with Intelligent Training Console, you’ll get a digitally connected, guided experience.
ADJUSTMENTS
User adjustment range 8 position back pad w/total range of 40 degrees, 6 Tibia pad positions 10 degrees apart
Machine assisted user adjustments Spring assisted back pad; self-aligning tibia pad
Color coded pivots & points of adjustment Yes
FRAME & CABLES
Available frame colors Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
Frame finish Proprietary two-coat powder process
Cable transmission Internally lubricated cables & fittings
Machine anchoring Independent machine hold down brackets
Integrated leveling system Yes, top-down leveler
INTELLIGENT TRAINING CONSOLE (OPTIONAL)
Progression Based Programming Yes
Stored user settings Yes – Seat Settings and Bluetooth HR
Demo Video Yes
Dual User Sign-In Yes
Workouts Manual, Endurance, Build, Strength*, E-Lifts*
Personal Trainer Portal Compatible Yes
Netpulse Compatible Yes
Workout Tracking Network Compatible Yes
Web Connectivity Yes
WiFi Yes
Display Feedback Sets, Reps, Rest Time, Total Weight Lifted
Ethernet Port Yes
Bluetooth Heart Rate Only
User-defined Multi-language Display English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish
Lift to Start Yes
FitTouch™ Technology Yes
Display Type 25.7 cm / 10.1″ class touchscreen LCD
Asset Management Compatible Yes
Facility Communication Portal/Calendar No
CSAFE Ready-FitLinxx™ Certified No
USB Port No (service only)
Assembled Dimensions As assembled on Ultra weight stack – 153 cm / 60.2″
Power Requirements 100v-240v – 50/60Hz AC
Shipping Weight 7.8 kg / 17.2 lb
TECH SPECS
Overall “static” dimensions (L x W x H) 122 x 125.9 x 135 cm / 48″ x 49.6″ x 53″
Overall “in-use” dimensions (L x W x H) 152.4 x 125.9 x 135 cm / 60″ x 49.6″ x 53″
Product weight 304 kg / 671 lbs
Shipping weight 356 kg / 785 lbs
Rep counter machine usage tracking Service mode tracks total machine reps and hours of use
Rep counter battery life Approximately 3 years
Rep counter power supply 2 AA batteries
USER AMENITIES
Front placards Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, color-coded machine identification
Rear placards Color-coded machine identification, exercise specific stretching
Placard color coding Blue (lower body)
Rep counter Electronic counter displays reps, exercise time and rest time
Personal storage Two tactile storage mats, personal device cradle and towel hook
Contoured seat Yes
WEIGHT STACK
Total stack weight 108 kg / 240 lbs
Weight plate increments 4.5 kg / 10 lbs
Incremental weight system 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
Max Training Weight 111.4 kg / 247.5 lbs
Consistent 53” stack height Yes
Weight stack guarding Full front and rear shields
